Conversion Adapter for JTAG

SICA (Small Interface Cable Adapter) Series

MINICUBE / MINICUBE2 / MINICUBE+ / IECUBE(78K0S/Kx1+)

MINICUBE (QB-V850MINI)	MINICUBE2 (QB-MINI2)	MINICUBE+ (QB-78K0SKX1MINI)	IECUBE (QB-78K0SKX1)

[ Device of supported Renesas ]

78K0, 78K0S ,78K0R, V850 Series

[ Features ]

Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.

The target board connector surface mounted on PCB without needing any "through holes". Now,the other side of PCB is available for mounting components.

This cable is very flexible. Therefore, the target board connector can be placed close to CPU.

Connector contact life is 500 times of insertion and extraction.

A polarity key prevents the user to plug the connectors in the wrong direction.

This cable is lead free product which is very safe for environment.

In-Circuit Emulator

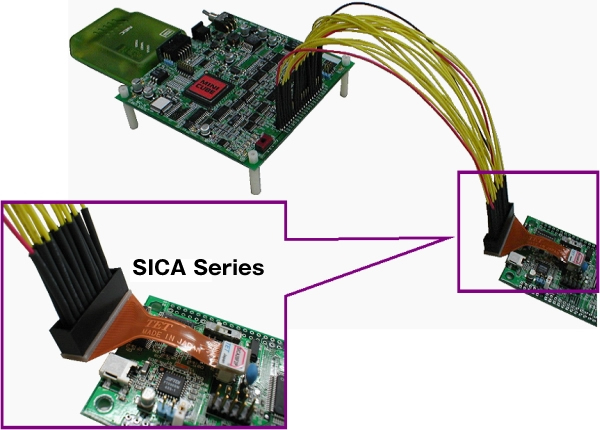

※Example of the use of a small connector "SICA20I2P" in QB-78K0SKX1MINI

[ Products ]

Products Product Number

Device Emulator SICA Target connector

78K0S/KU1+
(10pin) QB-78K0SKX1MINI
QB-78K0SKX1 SICA10I2P SICA2P20S05

78K0S/KY1+
(16pin) SICA16I2P

78K0S/KA1+
(20pin) SICA20I2P

78K0S/KB1+
(30pin) SICA30I2P 5-AXK5S30035

※SICA2P50S05 and 5-AXK5S30035 ： 5 piece are packed in a plastic bag

OCD for small connector / flash If you want to use as a programmer for a small connector

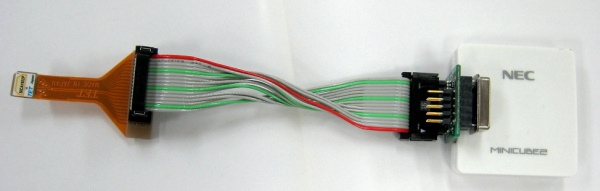

※Example of the use of a small connector "SICA16I2P" to "QB-MINI2"

[ Products ]

Products Product Number

Device Emulator OCD programming SICA Target connector

78K0S QB-MINI2 ○ ○ SICA16I2P
(16pin) SICA2P20S05

78K0 QB-78K0MINI ○ × SICA10I2P
(10pin)

QB-MINI2 ○ × SICA10I2P
(10pin)

○ ○ SICA16I2P
(16pin)

78K0R QB-MINI2 ○ ○ SICA16I2P
(16pin)

V850 QB-V850MINI ○ × SICA20I2P
(20pin)

QB-MINI2 ○ ○ SICA16I2P
(16pin)

※SICA2P50S05 ： 5 piece are packed in a plastic bag

[ Features ]

Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.

The target board connector surface mounted on PCB without needing any "through holes". Now,the other side of PCB is available for mounting components.

This cable is very flexible. Therefore, the target board connector can be placed close to CPU.

Connector contact life is 500 times of insertion and extraction.

A polarity key prevents the user to plug the connectors in the wrong direction.

This cable is lead free product which is very safe for environment.

Renesas's web site

Products		Product Number
Device	Emulator	SICA	Target connector
78K0S/KU1+ (10pin)	QB-78K0SKX1MINI QB-78K0SKX1	SICA10I2P	SICA2P20S05
78K0S/KY1+ (16pin)		SICA16I2P
78K0S/KA1+ (20pin)		SICA20I2P
78K0S/KB1+ (30pin)		SICA30I2P	5-AXK5S30035
