(3) Package Conversion Board miniaturized with half through hole technology.

Customer's Request

  • to mount another IC device as the current IC has been maintained.


  • to mount other logic circuits or other ICs, maintaining current QFP or BGA foot pattern.


Our Proposal

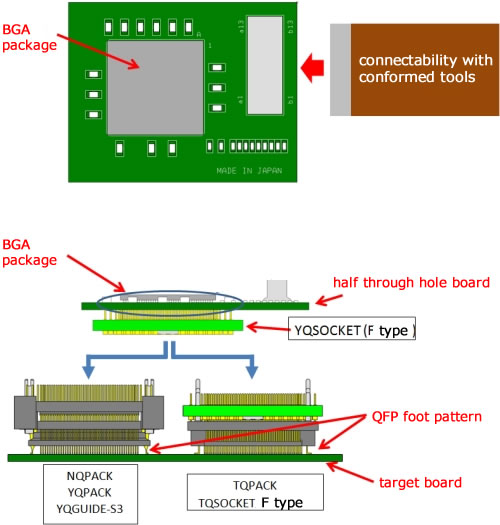

  • space saving and simple wiring package conversion board by adopting half through hole technology.


  • board designing with adjusted impedance.
