(4) Tool to connect with existing pad without connector (without soldering work).

Customer's Request

  • to connect with existing board without mounting connector.


  • to make positioning easier without any additional modification on existing board.


  • to keep stable contact with solder ball on the pad.


Our Proposal

  • to propose connector free type.


  • counter boring to be made on the tool, not to touch other parts.

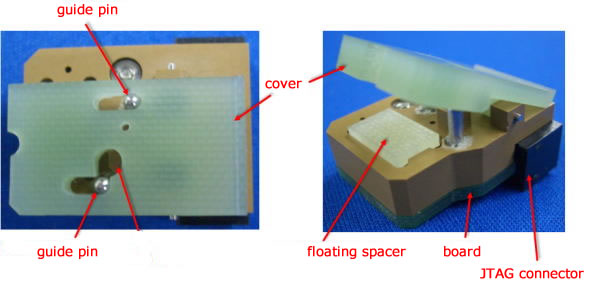

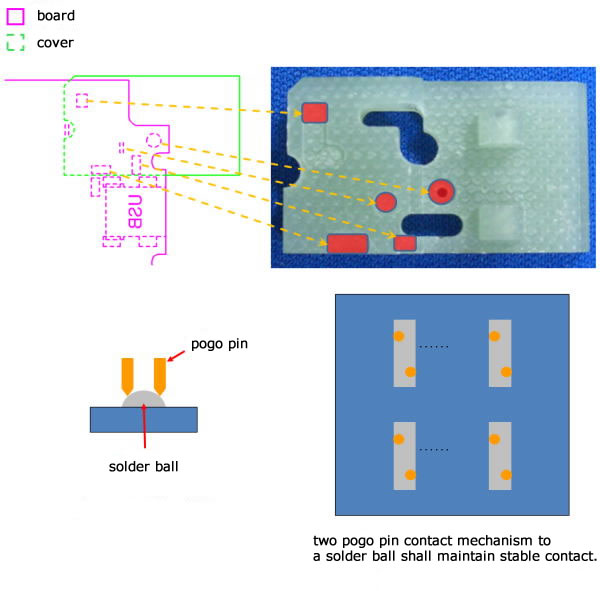

  • Utilizing mounted parts or board as a guide, two pogo pin contact mechanism to a solder ball shall maintain stable contact.
