2.54mm pitch type Catalogue

2.54mm pitch connector PWB type Catalogue

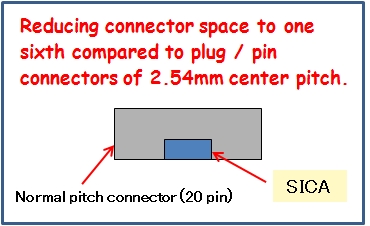

Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.

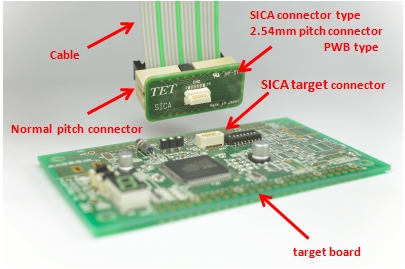

Application example

(1)Place the SICA target connector(SICA2P20S) on the target board.

(2)Connect the normal pitch connector cable to the SICA 2.54mm pitch connector PWB type.

(3)Connect the SICA 2.54mm pitch connector PWB type to the SICA target connector on the target board.

Features

Reducing connector space to one sixth compared to plug / pin connectors of 2.54mm center pitch.

The target board connector surface mounted on PCB without needing any "through holes". Now, the other side of PCB is available for mounting components.

Connector contact life is 500 times of insertion and extraction.

A polarity key prevents the user to plug the connectors in the wrong direction.

This product is in compliance with RohS.

Specifications

Target pin numbers for 10pin, 14pin, 16pin, and 20pin

PWB FR-4

Socket at target board SICA2P20S

SSOP 20pin 0.5mm pitch with TET customs
(One connector is appended with the product.)

Cable DC resistance Less than 0.3 ohm

Connect life times 500 times of insertion and extraction with enclosed socket for target board

Product and accessory part

SICA One piece

Socket at target board(SICA2P20S) One piece

Mechanical Drawing (SICA20E20D-GGP1)

Option part up on request

SICA2P20S05 5 piece are packed in a plastic bag

✽The information in this document is subject to change without notice.

Target pin numbers	for 10pin, 14pin, 16pin, and 20pin
PWB	FR-4
Socket at target board	SICA2P20S
Socket at target board	SSOP 20pin 0.5mm pitch with TET customs (One connector is appended with the product.)
Cable DC resistance	Less than 0.3 ohm
Connect life times	500 times of insertion and extraction with enclosed socket for target board
