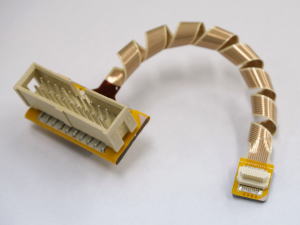

SICA Spiral Type is Conversion Adapter,with which the mounting space can be reduced up to one sixth from 2.54mm normal pitch Connector. SICA Spiral Type can be mounted on flat cable used for JTAG.

Main Features of SICA Spiral Type

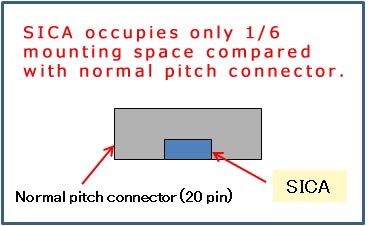

By using SICA Spiral Type target connector, the connector space can be reduced up to one sixth compared with normal pitch connector and to a half compared with half pitch connector. (when 20 pin type is used)

Due to spiral shape cable, wiring is flexible at any angle.

The target board connector isi surface mount type, and the other side of the board is available for mounting other components.

Connector contact life is 500 times insertion and extraction.

With reverse insertion protection mechanism.

In compliance with RoHS.

Specifications

Target pin numbers for 10pin, 14pin, 16pin, and 20pin

Cable material Polyimide FPC double layers

Socket at target board SICA2P20S

SSOP 20pin 0.5mm pitch with TET customs
(One connector is appended with the product.)

Cable DC resistance Less than 0.3 ohm

Connect life times 500 times of insertion and extraction with enclosed socket for target board

Mechanical Drawing (SICA20E20D-SP)

Option part up on request

SICA2P20S05 5 piece are packed in a plastic bag

Target pin numbers	for 10pin, 14pin, 16pin, and 20pin
Cable material	Polyimide FPC double layers
Socket at target board	SICA2P20S
Socket at target board	SSOP 20pin 0.5mm pitch with TET customs (One connector is appended with the product.)
Cable DC resistance	Less than 0.3 ohm
Connect life times	500 times of insertion and extraction with enclosed socket for target board
