NQPACKシリーズ 製品図面一覧

製品図面一覧

(単位 : mm) [2012年8月現在]

ピン数

32

44

48

52

56

64

80

100

112

116

120

128

144

156

160

168

176

208

216

240

256

272

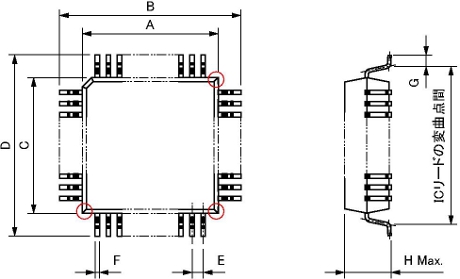

適合IC寸法
A , C : ICボディーサイズ B , D : IC外形サイズ E : リードピッチ F : リード幅 G : 半田付け部 H : IC高さ ○ : 樹脂残り
ピ ン 数	リード ピッチ	IC ボディ サイズ	IC 外形 サイズ	NQPACK シリーズ ( SL type )	HQPACK シリーズ	YQPACK シリーズ	YQSOCKET シリーズ
	E	A x C	B x D
32	0.8	7.0 x 7.0	9.0 x 9.0	NQPACK032SA (NQPACK032SA-SL)	HQPACK032SA	YQPACK032SA	N type F type F-2 type	YQSOCKET032SAN YQSOCKET032SAF YQSOCKET032SAF-2
44	0.8	10.0 x 10.0	12.0 x 12.0	NQPACK044SA (NQPACK044SA-SL)	HQPACK044SA	YQPACK044SA	N type F type F-2 type	YQSOCKET044SAN YQSOCKET044SAF YQSOCKET044SAF-2
			13.2 x 13.2	NQPACK044SA132 (NQPACK044SA132-SL)	HQPACK044SA132	YQPACK044SA132
48	0.5	7.0 x 7.0	9.0 x 9.0	NQPACK048SD (NQPACK048SD-SL)	HQPACK048SD	YQPACK048SD	N type F type F-2 type	YQSOCKET048SDN YQSOCKET048SDF YQSOCKET048SDF-2
	0.65	10.0 x 10.0	12.0 x 12.0	NQPACK048SB (NQPACK048SB-SL)	HQPACK048SB	YQPACK048SB	N type F type F-2 type	YQSOCKET048SBN YQSOCKET048SBF YQSOCKET048SBF-2
52	0.65	10.0 x 10.0	12.0 x 12.0	NQPACK052SB (NQPACK052SB-SL)	HQPACK052SB	YQPACK052SB	N type F type F-2 type	YQSOCKET052SBN YQSOCKET052SBF YQSOCKET052SBF-2
56	0.65	10.0 x 10.0	12.8 x 12.8	NQPACK056SB (NQPACK056SB-SL)	HQPACK056SB	YQPACK056SB	N type F type F-2 type	YQSOCKET056SBN YQSOCKET056SBF YQSOCKET056SBF-2
64	0.4	7.0 x 7.0	9.0 x 9.0	NQPACK064SE (NQPACK064SE-SL)	HQPACK064SE	YQPACK064SE	N type F type F-2 type	YQSOCKET064SEN YQSOCKET064SEF YQSOCKET064SEF-2
	0.5	10.0 x 10.0	12.0 x 12.0	NQPACK064SD *3 (NQPACK064SD-SL) *3 NQPACK064SD-ND (NQPACK064SD-ND-SL)	HQPACK064SD	YQPACK064SD	N type F type F-2 type	YQSOCKET064SDN YQSOCKET064SDF YQSOCKET064SDF-2
	0.65	12.0 x 12.0	14.8 x 14.8	NQPACK064SB (NQPACK064SB-SL)	HQPACK064SB	YQPACK064SB	N type F type F-2 type	YQSOCKET064SBN YQSOCKET064SBF YQSOCKET064SBF-2
			14.0 x 14.0		HQPACK064SB140
	0.8	14.0 x 14.0	17.6 x 17.6	NQPACK064SA (NQPACK064SA-SL)	HQPACK064SA	YQPACK064SA	N type F type F-2 type	YQSOCKET064SAN YQSOCKET064SAF YQSOCKET064SAF-2
			16.0 x 16.0	NQPACK064SA160 (NQPACK064SA160-SL)	HQPACK064SA160
	1.0	14.0 x 20.0	17.6 x 23.6	NQPACK064RZ (NQPACK064RZ-SL)	HQPACK064RZ	YQPACK064RZ	N type F type F-2 type	YQSOCKET064RZN YQSOCKET064RZF YQSOCKET064RZF-2
80	0.4	10.0 x 10.0	12.0 x 12.0	NQPACK080SE (NQPACK080SE-SL)	HQPACK080SE	YQPACK080SE	N type F type F-2 type	YQSOCKET080SEN YQSOCKET080SEF YQSOCKET080SEF-2
	0.5	12.0 x 12.0	14.0 x 14.0	NQPACK080SD *3 (NQPACK080SD-SL) *3 NQPACK080SD-ND (NQPACK080SD-ND-SL)	HQPACK080SD	YQPACK080SD	N type F type F-2 type	YQSOCKET080SDN YQSOCKET080SDF YQSOCKET080SDF-2
	0.65	14.0 x 14.0	17.2 x 17.2	NQPACK080SB (NQPACK080SB-SL)	HQPACK080SB	YQPACK080SB	N type F type F-2 type	YQSOCKET080SBN YQSOCKET080SBF YQSOCKET080SBF-2
			16.0 x 16.0		HQPACK080SB160
	0.8	14.0 x 20.0	17.6 x 23.6	NQPACK080RA (NQPACK080RA-SL)	HQPACK080RA	YQPACK080RA	N type F type F-2 type	YQSOCKET080RAN YQSOCKET080RAF YQSOCKET080RAF-2
			16.0 x 22.0		HQPACK080RA160
			16.8 x 22.8		HQPACK080RA168
			17.8 x 23.8		HQPACK080RA178
100	0.4	12.0 x 12.0	14.0 x 14.0	NQPACK100SE (NQPACK100SE-SL)	HQPACK100SE	YQPACK100SE	N type F type F-2 type	YQSOCKET100SEN YQSOCKET100SEF YQSOCKET100SEF-2
	0.5	14.0 x 14.0	16.0 x 16.0	NQPACK100SD *3 (NQPACK100SD-SL) *3 NQPACK100SD-ND (NQPACK100SD-ND-SL)	HQPACK100SD	YQPACK100SD	N type F type F-2 type	YQSOCKET100SDN YQSOCKET100SDF YQSOCKET100SDF-2
			16.6 x 16.6		HQPACK100SD166
	0.65	18.0 x 18.0	22.9 x 22.9	NQPACK100SB (NQPACK100SB-SL)	HQPACK100SB	YQPACK100SB	N type F type F-2 type	YQSOCKET100SBN YQSOCKET100SBF YQSOCKET100SBF-2
	0.65	14.0 x 20.0	17.6 x 23.6	NQPACK100RB (NQPACK100RB-SL)	HQPACK100RB	YQPACK100RB	N type F type F-2 type	YQSOCKET100RBN YQSOCKET100RBF YQSOCKET100RBF-2
			16.0 x 22.0		HQPACK100RB1622
			16.8 x 22.8		HQPACK100RB168
			17.9 x 23.9	NQPACK100RB179 (NQPACK100RB179-SL)	HQPACK100RB179
112	0.65	20.0 x 20.0	22.0 x 22.0	NQPACK112SB (NQPACK112SB-SL)	HQPACK112SB	YQPACK112SB	N type F type F-2 type	YQSOCKET112SBN YQSOCKET112SBF YQSOCKET112SBF-2
			23.2 x 23.2		HQPACK112SB232
116	0.65	20.0 x 20.0	22.0 x 22.0	NQPACK116SB (NQPACK116SB-SL)	HQPACK116SB	YQPACK116SB	N type F type F-2 type	YQSOCKET116SBN YQSOCKET116SBF YQSOCKET116SBF-2
120	0.4	14.0 x 14.0	16.0 x 16.0	NQPACK120SE (NQPACK120SE-SL) NQPACK120SE-ND (NQPACK120SE-ND-SL)	HQPACK120SE	YQPACK120SE	N type F type F-2 type	YQSOCKET120SEN YQSOCKET120SEF YQSOCKET120SEF-2
	0.5	16.0 x 16.0	18.0 x 18.0	NQPACK120SD (NQPACK120SD-SL)	HQPACK120SD	YQPACK120SD	N type F type F-2 type	YQSOCKET120SDN YQSOCKET120SDF YQSOCKET120SDF-2
	0.5	20.0 x 20.0	22.0 x 22.0	NQPACK120SD220 (NQPACK120SD220-SL)	HQPACK120SD220	YQPACK120SD220	N type F type F-2 type	YQSOCKET120SD220N YQSOCKET120SD220F YQSOCKET120SD220F-2
			22.6 x 22.6		HQPACK120SD226
128	0.4	14.0 x 14.0	16.0 x 16.0	NQPACK128SE (NQPACK128SE-SL)	HQPACK128SE	YQPACK128SE	N type F type F-2 type	YQSOCKET128SEN YQSOCKET128SEF YQSOCKET128SEF-2
	0.5	18.0 x 18.0	20.0 x 20.0	NQPACK128SD (NQPACK128SD-SL)	HQPACK128SD	YQPACK128SD	N type F type F-2 type	YQSOCKET128SDN YQSOCKET128SDF YQSOCKET128SDF-2
	0.5	20.0 x 20.0	22.0 x 22.0	NQPACK128SD220 (NQPACK128SD220-SL)	HQPACK128SD220	YQPACK128SD220	N type F type F-2 type	YQSOCKET128SD220N YQSOCKET128SD220F YQSOCKET128SD220F-2
	0.5	14.0 x 20.0	16.0 x 22.0	NQPACK128RD (NQPACK128RD-SL)	HQPACK128RD	YQPACK128RD	N type F type F-2 type	YQSOCKET128RDN YQSOCKET128RDF YQSOCKET128RDF-2
			17.2 x 23.2		HQPACK128RD172
144	0.4	16.0 x 16.0	18.0 x 18.0	NQPACK144SE (NQPACK144SE-SL)	HQPACK144SE	YQPACK144SE	N type F type F-2 type	YQSOCKET144SEN YQSOCKET144SEF YQSOCKET144SEF-2
	0.5	20.0 x 20.0	22.0 x 22.0	NQPACK144SD *3 (NQPACK144SD-SL) *3 NQPACK144SD-ND (NQPACK144SD-ND-SL)	HQPACK144SD	YQPACK144SD	N type F type F-2 type	YQSOCKET144SDN YQSOCKET144SDF YQSOCKET144SDF-2
			22.6 x 22.6		HQPACK144SD226-H *2
156	0.4	14.0 x 20.0	16.0 x 22.0	NQPACK156RE (NQPACK156RE-SL)	HQPACK156RE	YQPACK156RE	N type F type F-2 type	YQSOCKET156REN YQSOCKET156REF YQSOCKET156REF-2
160	0.5	24.0 x 24.0	26.0 x 26.0	NQPACK160SD260 (NQPACK160SD260-SL)	HQPACK160SD260	YQPACK160SD260	N type F type F-2 type	YQSOCKET160SD260N YQSOCKET160SD260F YQSOCKET160SD260F-2
	0.65	28.0 x 28.0	32.0 x 32.0	NQPACK160SB (NQPACK160SB-SL)	HQPACK160SB	YQPACK160SB	N type F type F-2 type	YQSOCKET160SBN YQSOCKET160SBF YQSOCKET160SBF-2
168	0.65	28.0 x 28.0	31.2 x 31.2	NQPACK168SB (NQPACK168SB-SL)	HQPACK168SB	YQPACK168SB	N type F type F-2 type	YQSOCKET168SBN YQSOCKET168SBF YQSOCKET168SBF-2
176	0.4	20.0 x 20.0	22.0 x 22.0	NQPACK176SE (NQPACK176SE-SL)	HQPACK176SE	YQPACK176SE	N type F type F-2 type	YQSOCKET176SEN YQSOCKET176SEF YQSOCKET176SEF-2
	0.5	24.0 x 24.0	26.0 x 26.0	NQPACK176SD *3 (NQPACK176SD-SL) *3 NQPACK176SD-ND (NQPACK176SD-ND-SL)	HQPACK176SD	YQPACK176SD	N type F type F-2 type	YQSOCKET176SDN YQSOCKET176SDF YQSOCKET176SDF-2
208	0.5	28.0 x 28.0	30.0 x 30.0	NQPACK208SD (NQPACK208SD-SL)	HQPACK208SD	YQPACK208SD	N type F type F-2 type	YQSOCKET208SDN YQSOCKET208SDF YQSOCKET208SDF-2
			30.6 x 30.6		HQPACK208SD306
					HQPACK208SD306H *1
216	0.4	24.0 x 24.0	26.0 x 26.0	NQPACK216SE (NQPACK216SE-SL)	HQPACK216SE	YQPACK216SE	N type F type F-2 type	YQSOCKET216SEN YQSOCKET216SEF YQSOCKET216SEF-2
240	0.5	32.0 x 32.0	34.6 x 34.6	NQPACK240SD (NQPACK240SD-SL)	HQPACK240SD	YQPACK240SD	N type F type F-2 type	YQSOCKET240SDN YQSOCKET240SDF YQSOCKET240SDF-2
					HQPACK240SD-H *2
256	0.4	28.0 x 28.0	30.6 x 30.6	NQPACK256SE (NQPACK256RE-SL)	HQPACK256SE	YQPACK256SE	N type F type F-2 type	YQSOCKET256SEN YQSOCKET256SEF YQSOCKET256SEF-2
			30.0 x 30.0	NQPACK256SE296 (NQPACK256SE296-SL)	HQPACK256SE300
272	0.5	36.0 x 36.0	38.6 x 38.6	NQPACK272SD (NQPACK272SD-SL)	HQPACK272SD	YQPACK272SD	N type F type F-2 type	YQSOCKET272SDN YQSOCKET272SDF YQSOCKET272SDF-2

*1 適合IC高さ 3.8mm Max.
*2 適合IC高さ 4.5mm Max.
*3 保守化 (NQPACK -ND製品の一本化に関するお知らせ。)


◇寸法が該当しない場合は，対象のパッケージ寸法図面とあわせてお問い合わせいただくか、
下記の「適合確認依頼フォーム」をご利用下さい。

仕様は、予告なく変更される場合がありますが、ご了承下さい。
